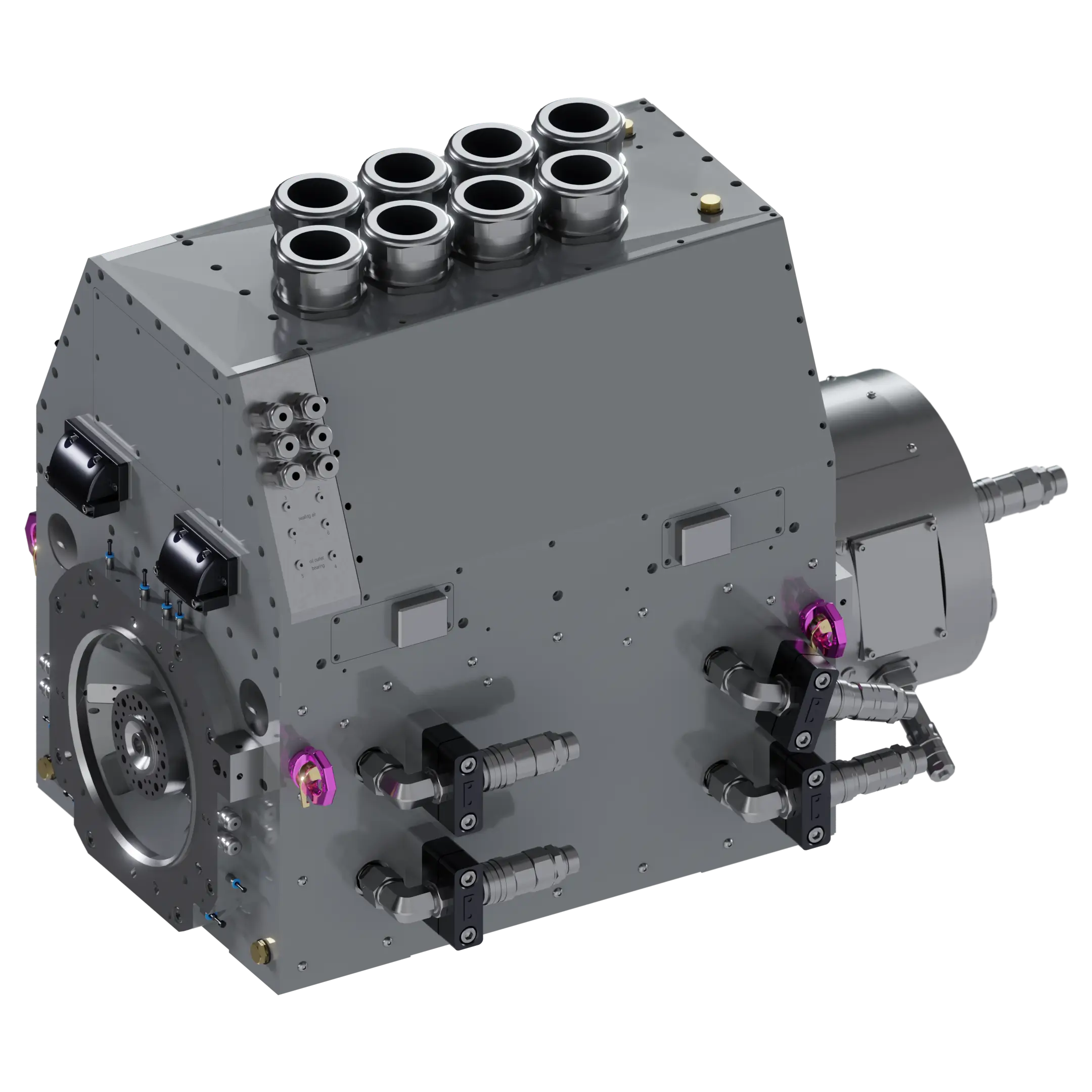

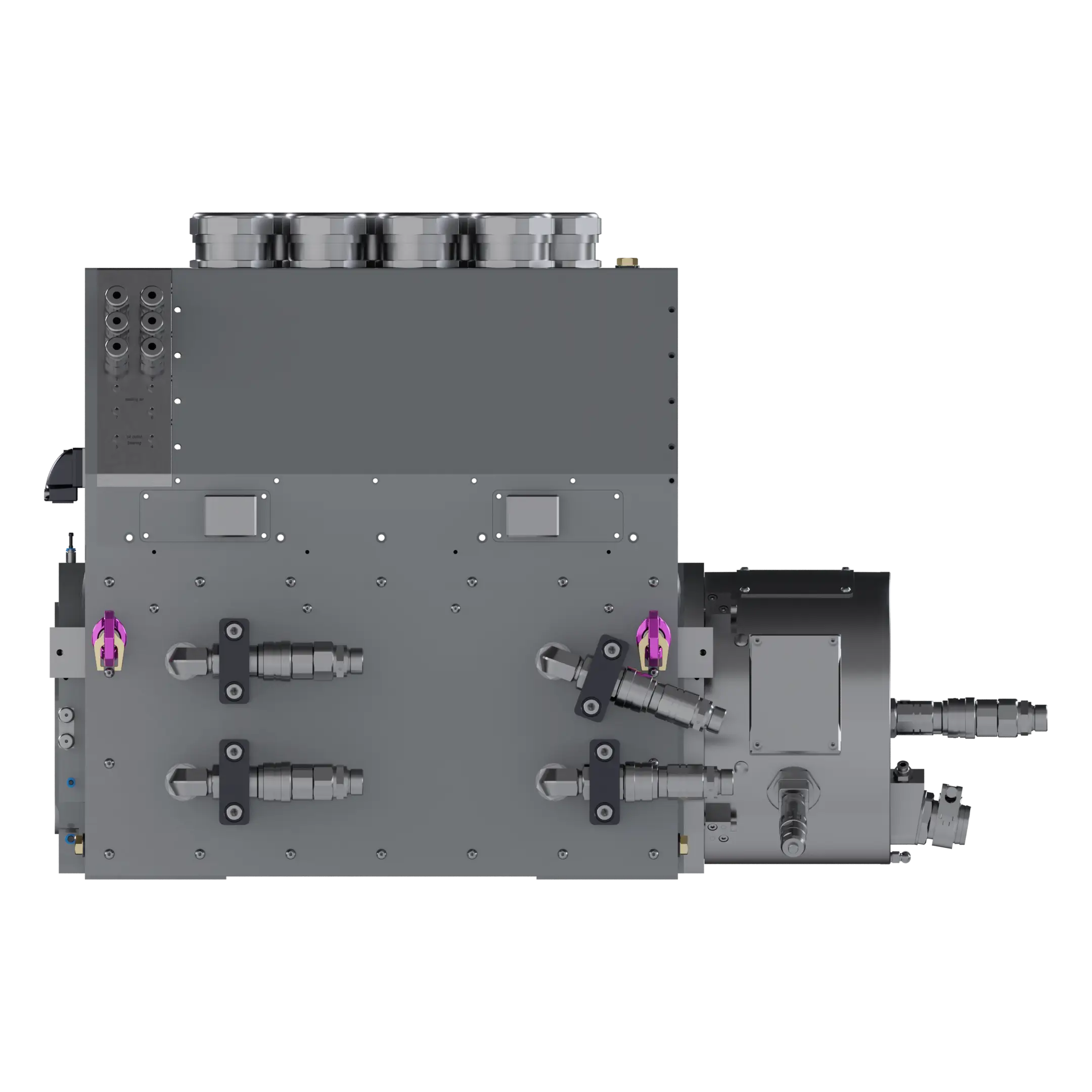

Three-phase synchronous motor
AVL023
01
02
Performance range: 500 kW / 1,100 kW (S1 / S8)
Rotation speeds: 1,910 rpm / 3,700 rpm (nominal / maximum)
Torques: 2,500 Nm / 4,500 Nm (S1 / S8)
Moment of inertia: 0.67 kgm² (plus adapter flange)
Wassermantelkühlung und interne Belüftung
Schutzart: IP44
03
Testing
Antriebslösungen
01
Degree of protection: IP44
02
Water coat cooling and internal ventilation
Support during the entire project and after sales service
Support during the entire project and after sales service
Support during the entire project and after sales service
Support during the entire project and after sales service
made in Germany
Download
Technical drawings
Take a look at the detailed technical drawing with exact dimensions, constructive references, and configuration information.
It provides all the necessary data for precise planning, coordination, and assembly.
